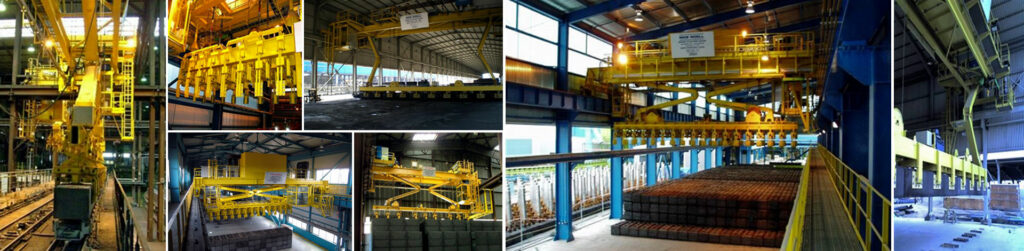

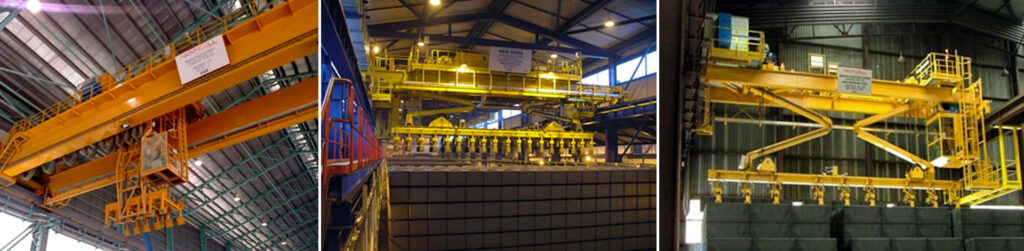

Anode Stacking Crane – ASC

Suitable for -40 … +50°C ambient temp.

Anode handling up to 22 anodes

Handling only horizontal anodes, only vertical anodes or both with the same grab

Handling anodes length-wise or cross-wise

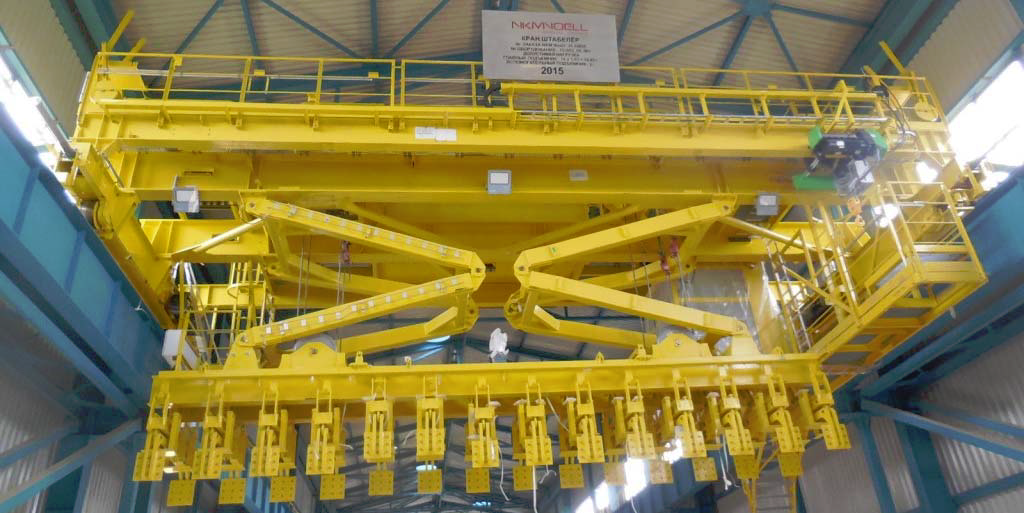

NKM NOELL SPECIAL CRANES’ ANODE STACKING CRANE


Main functions

Heated and/or air-conditioned cabin with ergonomically designed, fully adjustable operator chair with touch screen
Heated and/or (redundant) air-conditioned electrical room
Fully gravity or hydraulic operated, fail-safe anode handling grab
Grab mounted under the crane bridge or attached to a trolley on the bridge
Grab optionally provided with an anodes rotating mechanism
Automatic positioning system on long – and/or cross travel
Data communication with the plant via Wi-Fi Ethernet
Full maintenance access
Frequency controlled long – and/or cross travel, and anode hoist

For the production of molten aluminium in an electrolysis pot, baked anodes are required.

To produce these baked anodes, a number of steps are required; among which baking green anodes in a ring pit furnace, where the anodes are loaded and unloaded by a Furnace Tending Assembly (FTA).

To ascertain sufficient supply, either from the paste plant to the bake furnace or back from the bake furnace to the rodding shop, an intermediate storage shall be incorporated, provided with 1 or more anode stacking cranes (ASC’s)

The ASC will carry out the following operations; not necessarily in the given sequence:

  • Taking bundles of green anodes from an incoming conveyor from the paste plant and storing them in storage or transferring them immediately to the outgoing conveyor to the bake furnace;

  • Taking bundles of green anodes from storage and transferring them to the outgoing conveyor to the bake furnace;

  • Taking bundles of baked anodes from an incoming conveyor from the bake furnace and storing them in storage or transferring them immediately to the outgoing conveyor to the rodding shop;

  • Taking bundles of baked anodes from storage and transferring them to the outgoing conveyor to the rodding shop;

  • Performing various lifting jobs i.e. handling of single anodes with a Single Anode Grab (SAG) *1 and auxiliary hoist;
